Brass And Ferrous Alloy Gravity Die Casting Machine For Foundry Pieces Production

Brand Name : DZ

Model Number : HZ-450

Certification : CE

Place of Origin : China(Mainland)

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets per Month

Delivery Time : 2week

Packaging Details : wood

Condition : New

Warranty : 1 Year

name : Brass die casting machine

Technology : Gravity Die Casting Technology

Usage : Foundry Pieces Production

Raw material : Brass Copper Zinc Aluminum Steel Iron Alloy

Contact Now

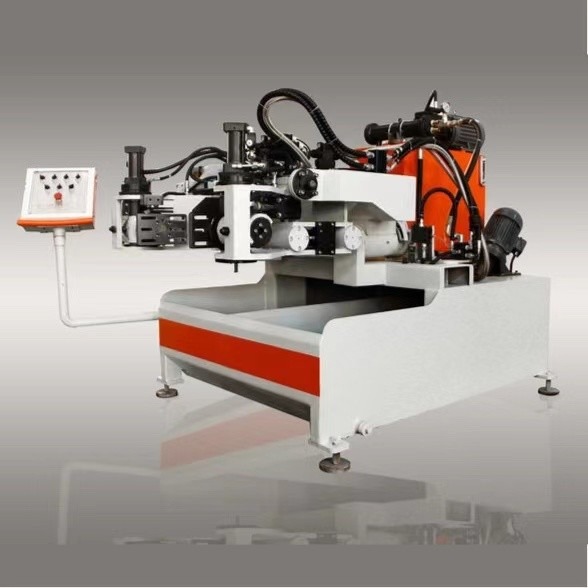

Gravity Die Casting Machine For Brass And Ferrous Alloy Foundry Pieces Production

Ⅰ CHARACTERISTIC

1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.

2) It is suitable for gravity die casting of brass and ferrous alloy.

3) It can be frontal casting, side casting, twice casting and mixed casting.

4) It is possible to individually adjust the cooling time of the die.

5) It facilitates the decomposition, combination and cleaning of dies.

6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.

7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.

8) The machine can store the die casting operation programs and set the password accordingly.

Ⅱ TECHNICAL PARAMETERS


1	MAX MOULD SIZE	450mm
2	Max Mould Weight	130KG
3	Longest Merger Distance	≤250mm
4	Hydraulic Pressure	40-60KPa
5	Side Casting Angie	0º-90º
6	Frontal Casting Angle	0º-110º
7	Hydraulic Oil	163L
8	Total Power	5.5KW
9	Installing Top Core Device	20mm travel
10	Net Weight	1750KG
11	Machine Dimension	225021601560mm

Brass And Ferrous Alloy Gravity Die Casting Machine For Foundry Pieces Production

FAQ

Q: Could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge.

Q: Could you arrange the production education?
A: Yes , we could and the buyer pay the charge.

Q: How long the guarantee?
A: One year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
